CNC Punching Marking and Cutting Machine for Angles Model APM1412

CNC Punching Marking and Cutting Machine for Angles Model APC1412

APC1412 is used to process the angels with size ∠40×3 ~ ∠140×12 (Q420).

Technical specification of APC1412

Model	APC412
Angle size processed	∠40×3 ~ ∠140×12 (Q420) mm
Max. workpiece length	12 m
Max. length of finished angle	8m
Max. punching(Dia.*thickness)	Φ25.5 *12mm
Norminal punching force	950KN
Nominal Marking force	1030 kN
Nominal cutting Force	1800KN
No. of punch on each side	3
No. of character group	4
No. of character per each group	18
Character size	141019mm
Range of stadia	20~170mm (stepless)
Max. feeding speed	40 m/min
Punching rate	About 1000 hole/hour
No. of CNC axis	3
Cutting mode	Single-blade cutting
Machine overall size	2673 m
Machine total power	31.4 kw
Machine weight	Approx. 16 t

There are four transverse conveyors which can infeed automatically.

Type of programming: keyboard input, USB interface input.

Layout: A/B type

Working environment:

Working temperature: 0℃~ 40℃

Power: Three phase four wire system

AC Voltage: according to customer's requirements

Fluctuation of voltage: ±10%

Frequency: according to customer's requirements

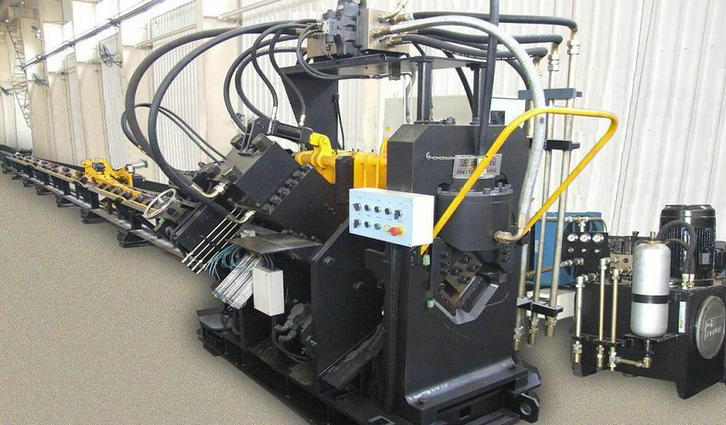

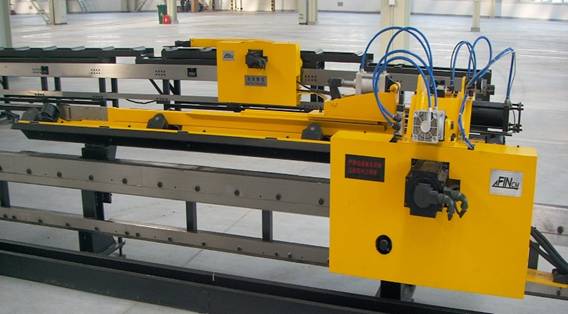

The machine is composed of punching unit, marking unit, cutting unit, transverse conveyor, rotating loading device, feeding conveyor, CNC carriage, unloading conveyor, hydraulic system, electrical system, pneumatic system and so on.

For punching unit, there are 3 sets punching die-station on each side, 6 kinds of punches with different diameter s can be installed. 3 sets die-station moves together through CNC control.

For cutting unit, it is single –blade cutting, so the cutting section is smooth and a lot of raw material is saved.

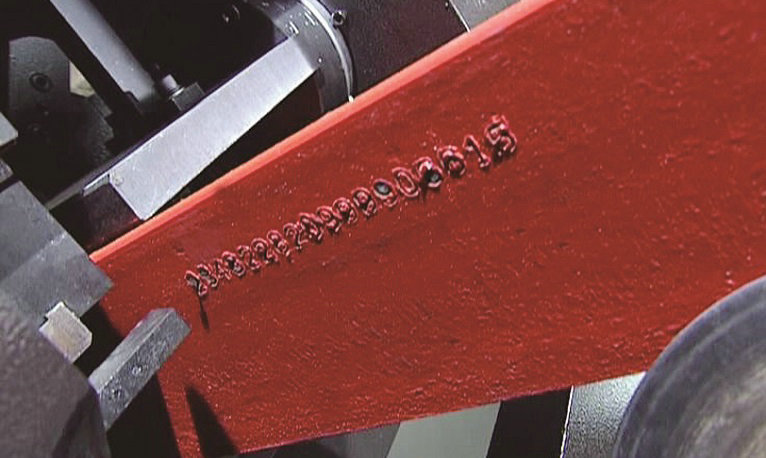

The marking unit adopts closed frame, having good rigidity. There are 4 groups of character box, and each character box can load 18 characters.

Technical Agreement of CNC Punching, Marking and Cutting Machine for Angles Model APM1412

Accessories and spare parts list of APC1412

No.	Code Name	Name	Quantity	Remark
1	BL20.5-31A	Punches for test run	12	Including the punches installed in the machine
2	BL20.5-30	Female Dies for test run	24	Including the die installed in the machine
3	APM1412.6-7A	The Upper Blade	1	Including the blade installed in the machine
3	APM1412.6-7B	The Upper Blade	1	Including the blade installed in the machine
4	APM1412.6-8	The nether Blade	4	Including the blade installed in the machine
5	BL20.5-39A	Die carrier	7	Including the die carrier installed in the machine
6	BL20.5-38A	Poles of the Punches	7	Including the pole installed in the machine
7	BL14.5-41	Nuts of the Punches	7	Including the nut installed in the machine
8	BL14.2-73	The Upper Claw	2	Including the claw installed in the machine
9	BL14.2-74	The Nether Claw	2	Including the claw installed in the machine
10		Springs of Every Parts	1set
11		Common tools (including：full set of inner hexangular spanner, 500, 300, 150MM adjustable spanner, two solid spanner, a set of screwdriver)	1batch
12		Standby paint	2 kegs	1 keg for main color and 1 keg for warning color
13		The Wrench for Tightening the Punches	1
14		Tools for Puff	1
15		The Drawing for wearing Parts	2 volume
16		The Drawing for Maintenance	2 volume
17		Quality Certificate, Packing List	1 volume each
18		Instruction Manual (mechanical part, electric part, hydraulic part)	2 volume each

Main outsourcing components list of APC1412

No.	Name	Brand	Country
1	AC Servo Motor	Panasonic	Japan
2	PLC	Yokogawa	France
3	Input module	Yokogawa	France
4	Output module	Yokogawa	France
5	Orientation module	Yokogawa	France
6	Contactor	Simens/ Schneider	Germany/France
7	Motor Switch	Simens/ Schneider	Germany/France
8	Towline	Igus/CPS	Germany/Korea
9	Solenoid unloading valve	ATOS//Yuken	Italy/Taiwan
10	Relief valve	ATOS//Yuken	Italy/Taiwan
11	Electro-hydraulic Valve	Justmark	Tai Wan
13	Manifold	AirTAC	Tai Wan
14	Air Valve	AirTAC	Tai Wan
15	Cylinder	SMC/CKD	Japan
15	Filter-Regulator-Lubricator Combination Units	SMC/CKD	Japan

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
