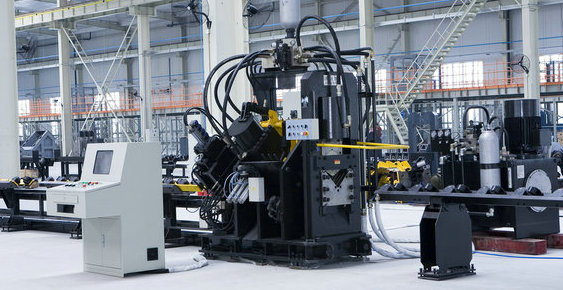

CNC Punching Marking and Cutting Machine for Angles Model AL2020

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

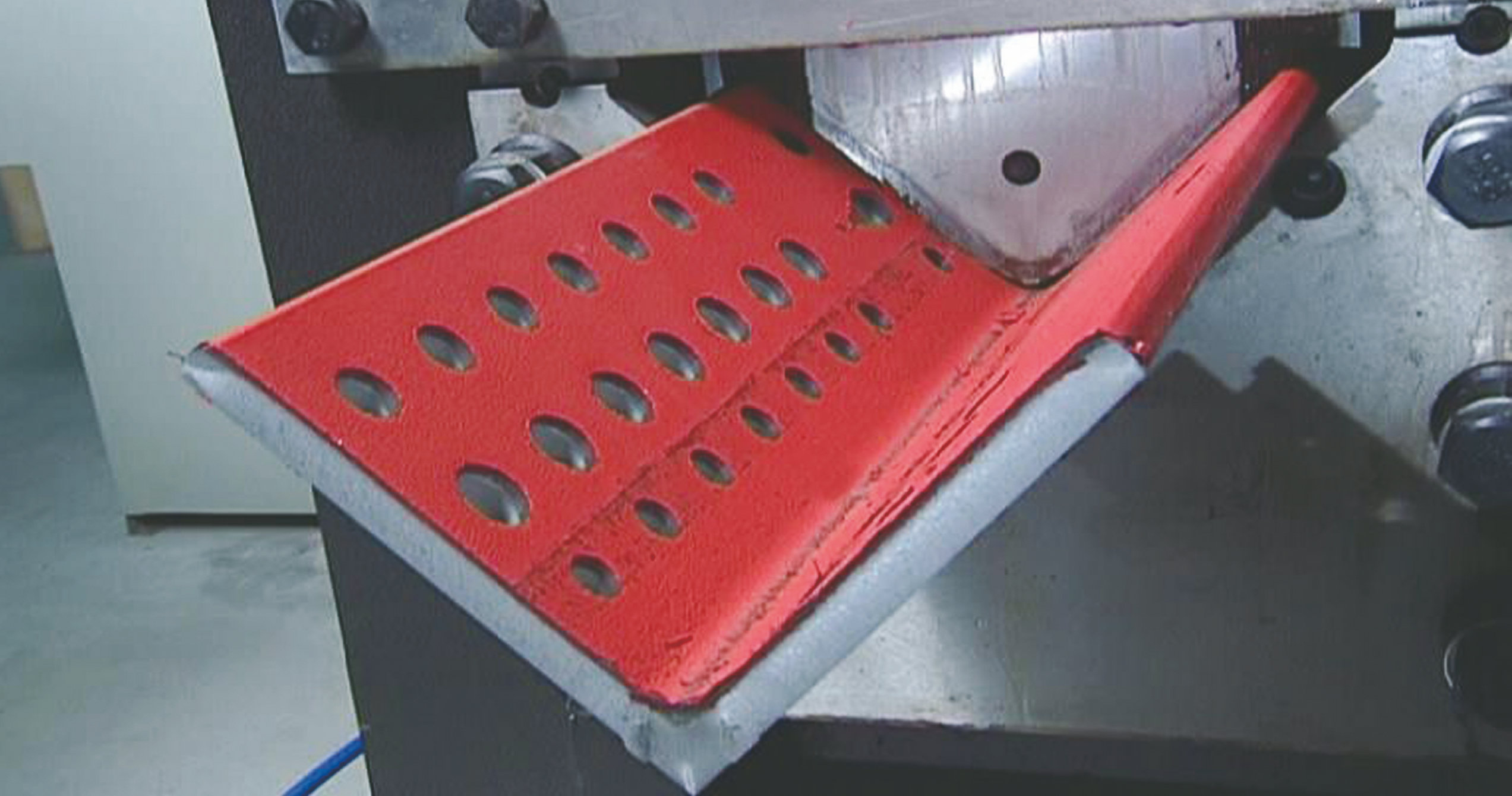

APC1412  is used to process the angels with size ∠63×4 ~ ∠200×20 (Q235-A or 16Mn) mm.

Technical Speicificaiton of AL2020
Model
AL2020C
Angle size processed
63×4 ~ 200×20 (Q235-A or 16Mn) mm
Max. workpiece length
14 m
Max. length of finished angle
12
Max. punching(Dia.*thickness)
Φ25.5 *20mm
Norminal   punching force
950KN
Nominal   Marking force
540/1030 kN
Nominal   cutting Force
1540KN
No. of punch on each side
3
No. of character group
4
No. of character per each group
18
Character size
14*10mm
Range of stadia
20~170mm (stepless)
Max. feeding speed
40 m/min
Punching rate
About 1000 hole/hour
No. of CNC axis
3
Cutting mode
double-blade cutting
Machine overall size
32*7*2.6 m
Machine total power
42 kw
Machine weight
Approx. 16.5 t
There are four sets of transverse conveyor, infeeding automatically and intermittently
Type of programming: keyboard input, USB interface input, floppy disc input.

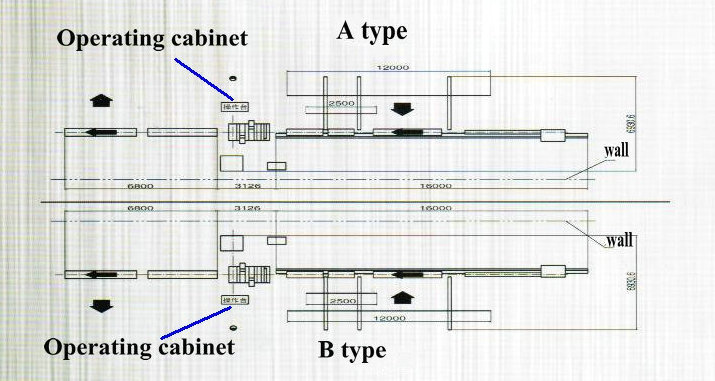

Layout: A/B type
 Working environment:
Working temperature: 0~ 40
Power: Three phase four wire system
AC Voltage: according to customer's requirements
Fluctuation of voltage: ±10%
Frequency: according to customer's requirements

AL2020 is used to process the angles with the size 63×4200×20 (Q235A 16Mn)
For punching unit, there are 3 sets punching frame on each side, the punching frames can be taken out easily to change the punches or dies.
The workpiece feeding carriage are driven by servo motor, photoelectric encoder feeds back information, it is closed loop control, and it has high positioning precision.
For marking unit,  there are 4 groups character boxes which can be selected by programming, the marking stadia can be set optionally within a certain rang.
For cutting unit, the double blade cutting gives smooth cutting section, and the cutting clearance can be adjusted conveniently.

List of accessories and spare parts of AL2020
Serial No.
Code
Name
Quantity
Remark
1
BL20.5-31A
Punching heads for   test run
12
including the punching head
installed in the   machine
2
BL20.5-30
Female dies for   test run
24
including the dies
installed in the   machine
3
BL20.6-14
The upper blade
2
including the blade
installed in the   machine
4
BL20.6-12A
The Short Nether Blade
4
including the blade
installed in the   machine
5
BL20.6-13A
The Long Nether Blade
4
including the blade
installed in the   machine
6
BL20.5-39A
Die carrier
7
including the die carrier installed in the   machine
7
BL20.5-38A
Pole of punching   head
7
including the pole
installed in the   machine
8
BL20.5-32
Nuts of the   Punching head
7
including the nuts
installed in the   machine
9
BL20.2-73
The   upper claw
2
including the claw
installed in the   machine
10
BL20.2-74
The nether claw
2
including the claw
installed in the   machine
11

Springs of Every   Parts
1 set

12

Common tools (including:full   set of inner hexangular wrench, 500, 300, 150MM adjustable wrench, two solid   wrench, a set of screwdriver)
1batch

13

Standby paint
2 kegs
1 keg   for main color and
1   keg  for warning color
14

The Wrench for   Tightening the Punches
1

15

Tools for puff
1

16

The Drawing for wearing Parts
2volume

17

The Drawing for Maintenance
2volume

18

Quality Certificate, Packing List
1volume
each

19

Instruction (mechanical part)Instruction(electric part)instruction (hydraulic part)
2volume
each


List of the main outsourcing components of AL2020
Serial No.
Name
Brand
Country
1
AC Servo Motor
Panasonic
Japan
2
Orientation   module
Yokogawa
Japan
3
PLC
Yokogawa
Japan
5
contactor
Simens/Schneider
Germany/France
6
Motor switch
Simens/Schneider
Germany/France
7
towline
Igus/CPS
Germany/Korea
8
Unloading Valve
ATOS/Yuken
Italy/Taiwan
9
relief valve
ATOS/Yuken
Italy/Taiwan
10
Electro-hydraulic Valve
ATOS/Yuken
Italy/Taiwan
11
Electromagnetic   valve
ATOS/Yuken
Italy/Taiwan
12
One-way valve
ATOS/Yuken
Italy/Taiwan
14
Air valve   plate
AirTAC
Taiwan China
15
Air valve
AirTAC
Taiwan China
16
cylinder
SMC/CKD
Japan
17
Filter-Regulator-Lubricator   Combined Units
SMC/CKD
Japan
Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
